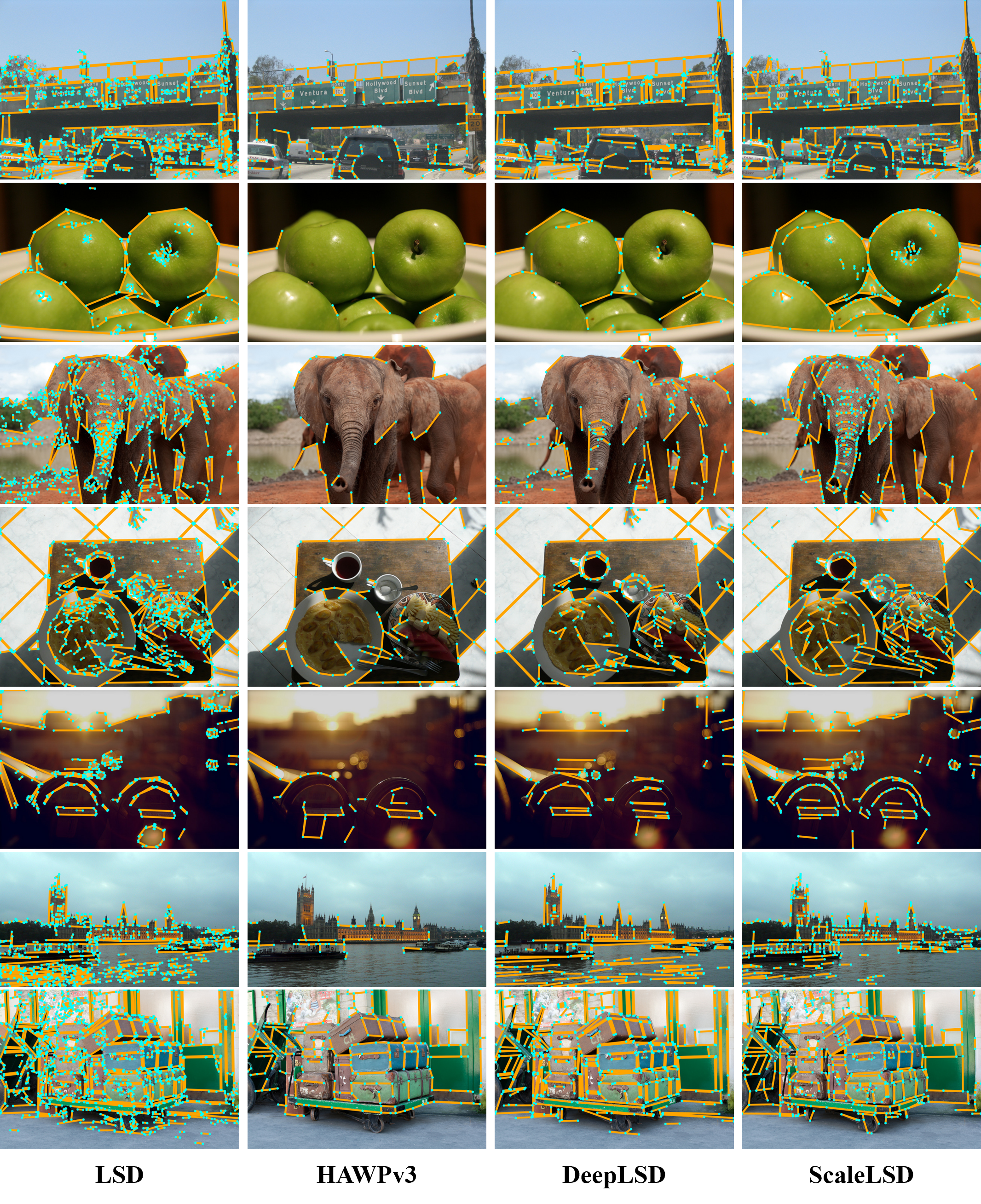

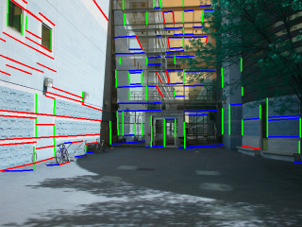

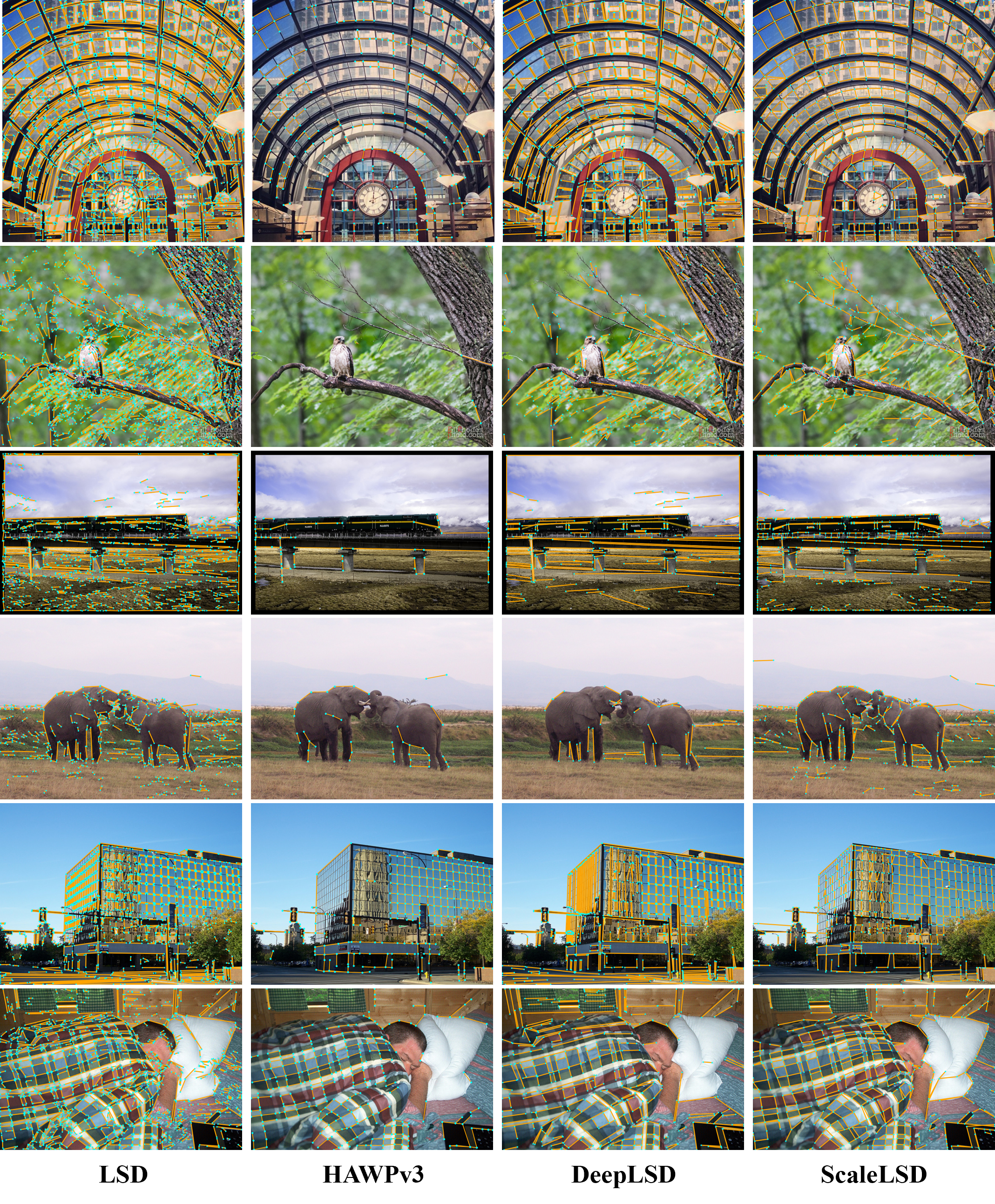

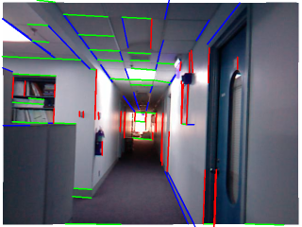

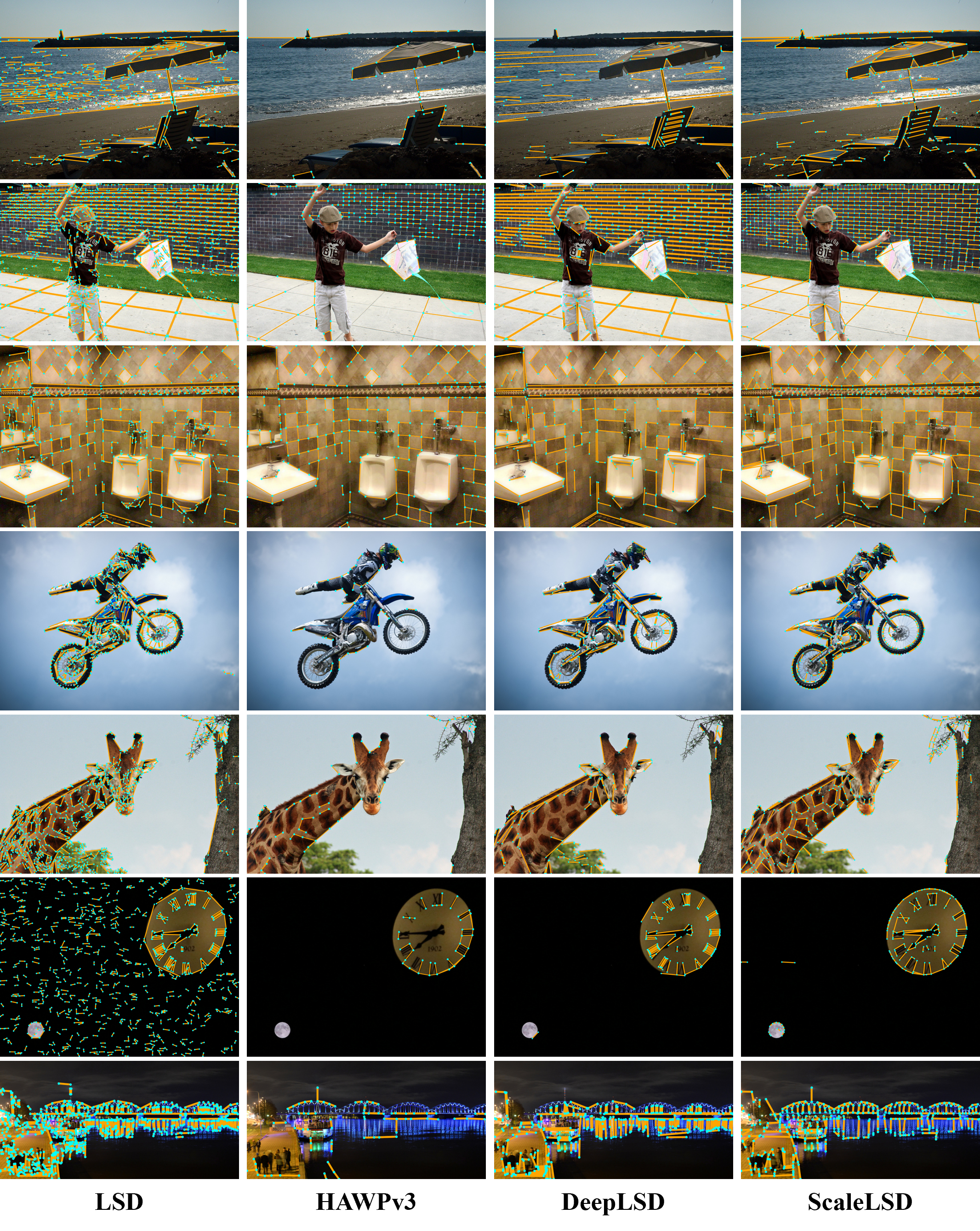

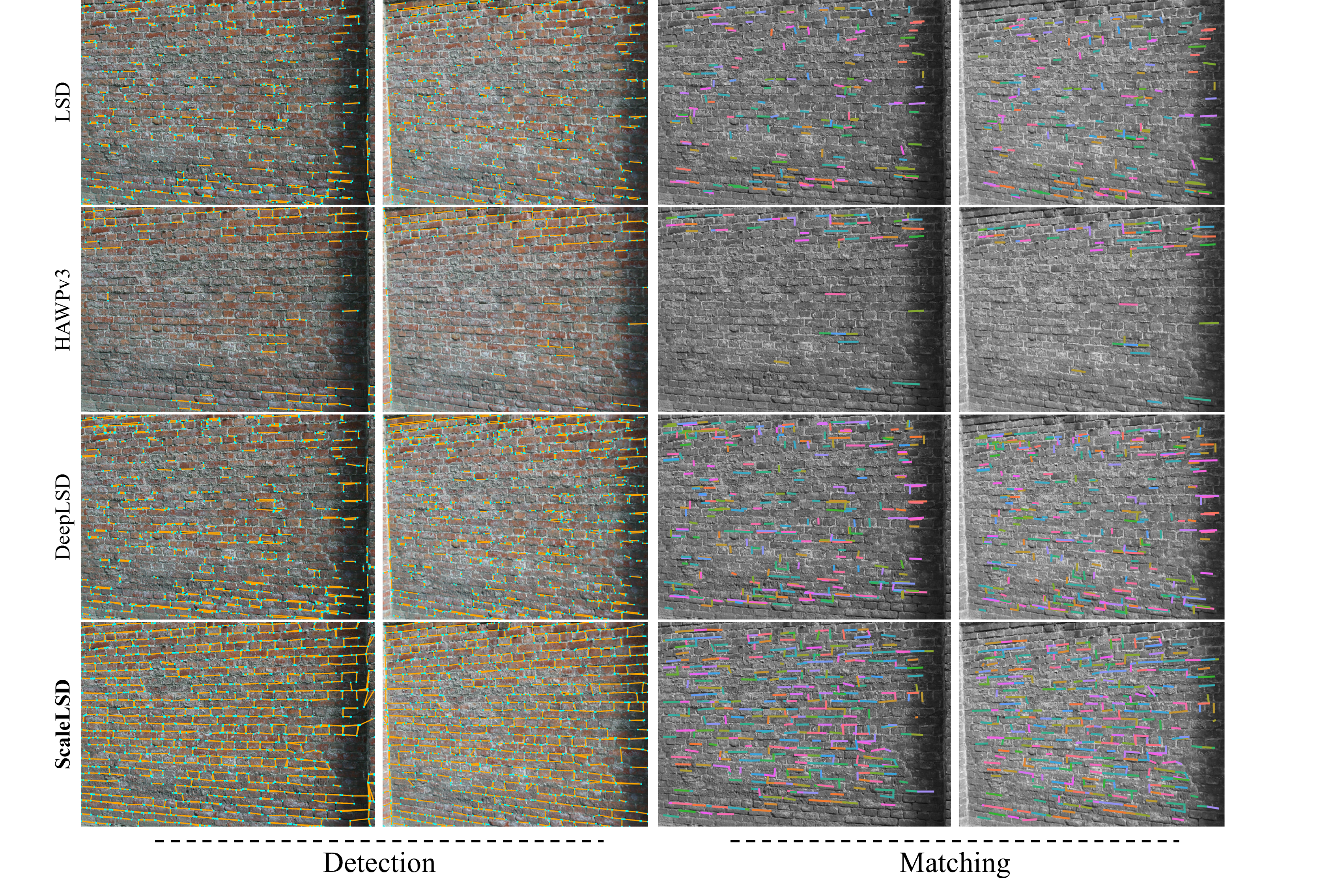

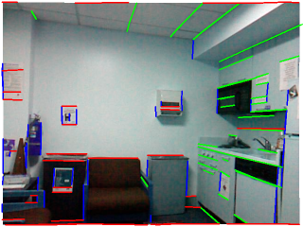

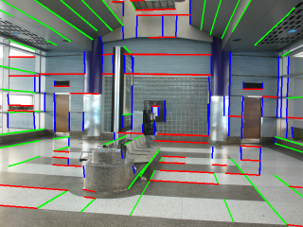

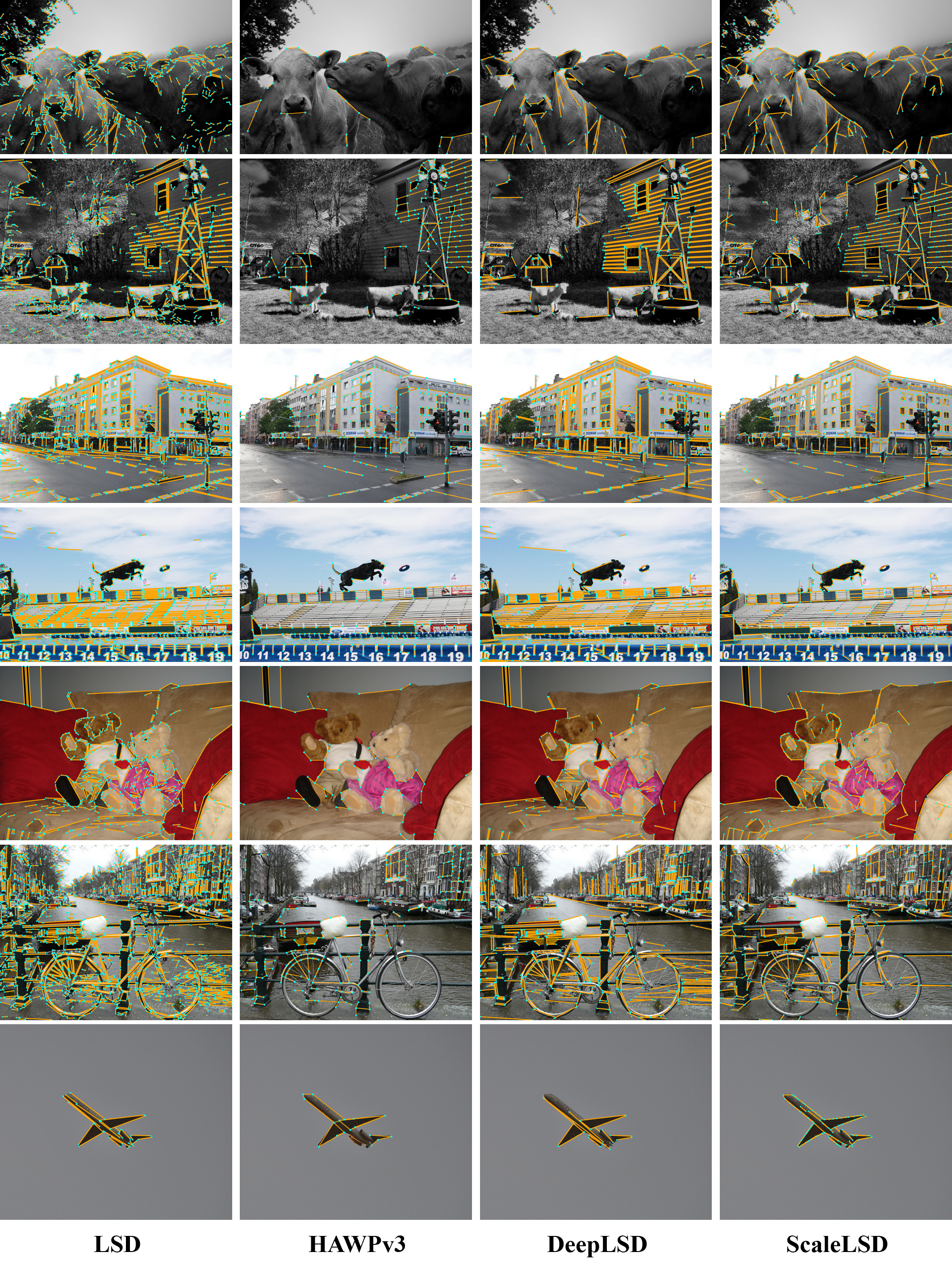

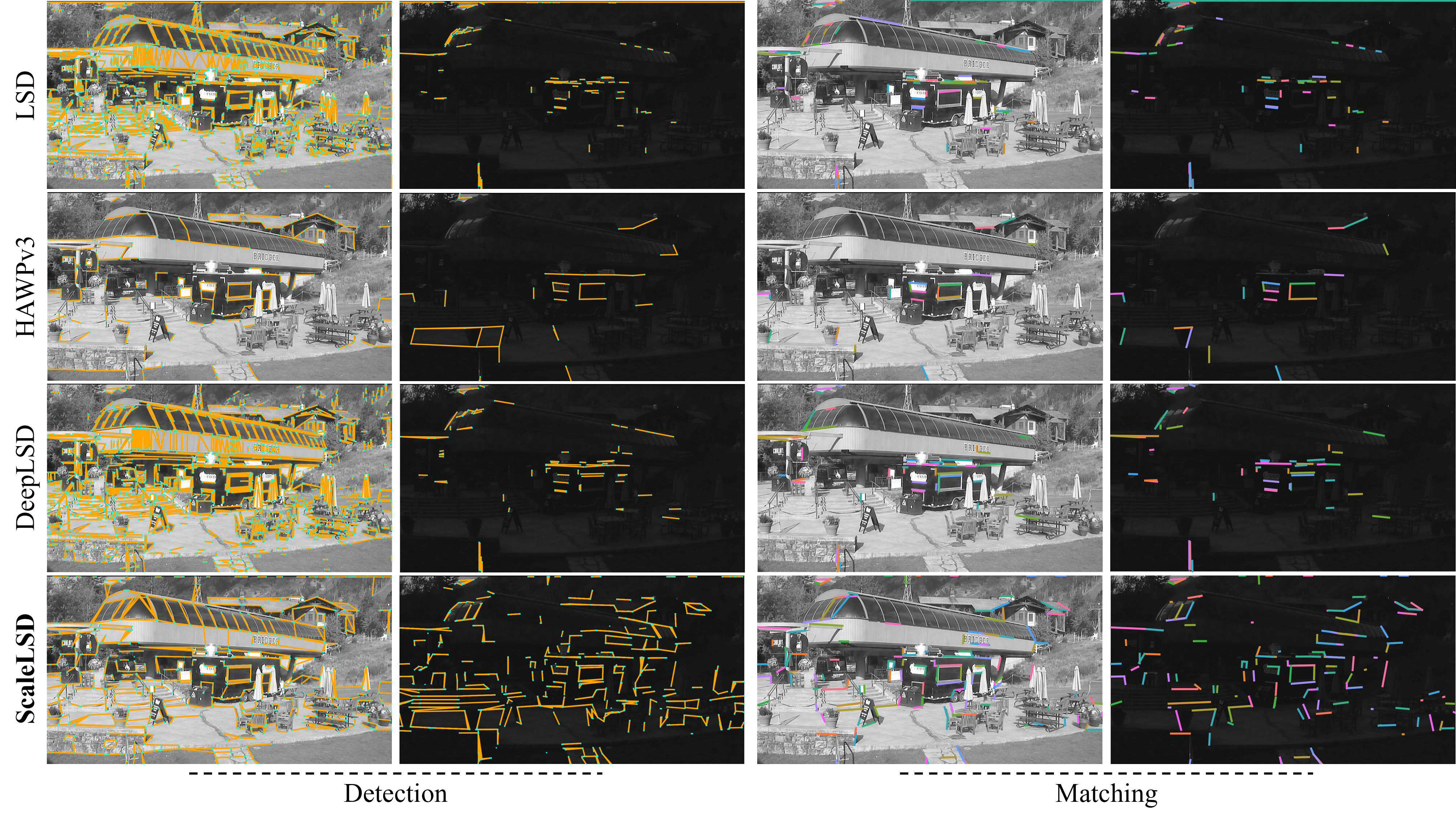

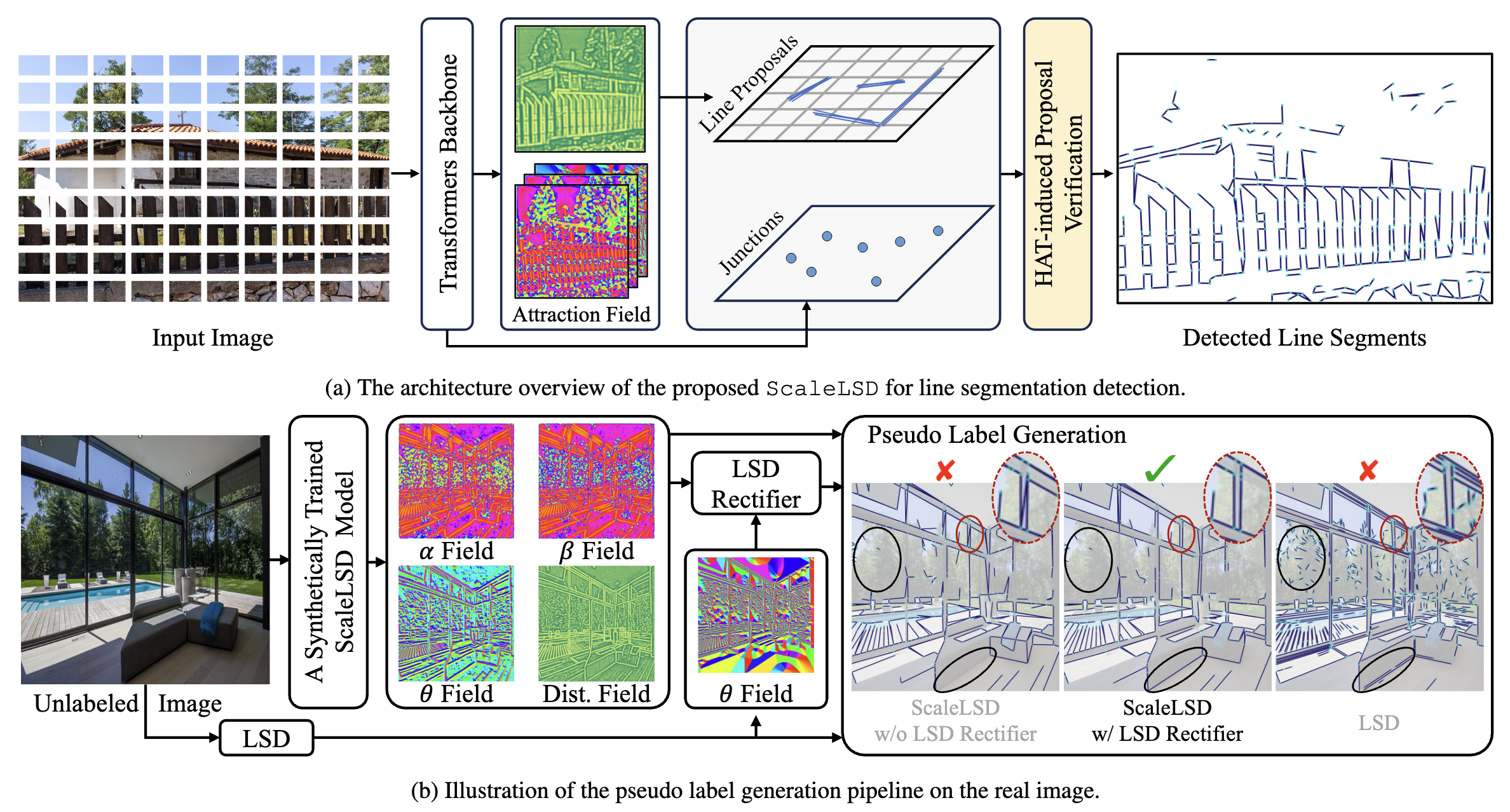

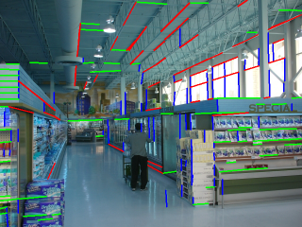

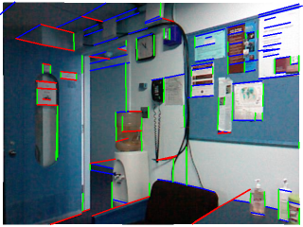

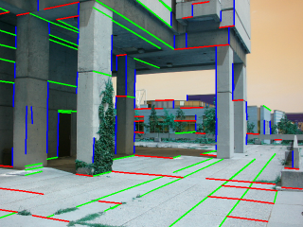

This paper studies the problem of Line Segment Detection (LSD) for the characterization of line geometry in images, with the aim of learning a domain-agnostic robust LSD model that works well for any natural images. With the focus of scalable self-supervised learning of LSD, we revisit and streamline the fundamental designs of (deep and non-deep) LSD approaches to have a high-performing and efficient LSD learner, dubbed as ScaleLSD, for the curation of line geometry at scale from over 10M unlabeled real-world images. Our ScaleLSD works very well to detect much more number of line segments from any natural images even than the pioneered non-deep LSD approach, having a more complete and accurate geometric characterization of images using line segments. Experimentally, our proposed ScaleLSD is comprehensively testified under zero-shot protocols in detection performance, single-view 3D geometry estimation, two-view line segment matching, and multiview 3D line mapping, all with excellent performance obtained. Based on the thorough evaluation, our ScaleLSD is observed to be the first deep approach that outperforms the pioneered non-deep LSD in all aspects we have tested, significantly expanding and reinforcing the versatility of the line geometry of images.
Some related works can be found at HAWPv3, DeepLSD.
1. Rafael Grompone von Gioi, J´er´emie Jakubowicz, JeanMichel Morel, and Gregory Randall. LSD: A fast line segment detector with a false detection control. IEEE TPAMI, 32(4):722–732, 2010.
2. Nan Xue, Tianfu Wu, Song Bai, Fu-Dong Wang, Gui-Song Xia, Liangpei Zhang, and Philip H.S. Torr. Holistically-attracted wireframe parsing: From supervised to self-supervised learning. IEEE TPAMI, 45(12):14727–14744, 2023.
3. R´emi Pautrat, Daniel Barath, Viktor Larsson, Martin R .Oswald, and Marc Pollefeys. Deeplsd: Line segment detection and refinement with deep image gradients. In CVPR, pages 17327–17336. IEEE, 2023.
@article{ScaleLSD2025,
author = {Zeran Ke, Bin Tan, Xianwei Zheng, Yujun Shen, Tianfu Wu and Nan Xue},
title = {ScaleLSD: Scalable Deep Line Segment Detection Streamlined},
journal = {CVPR},
year = {2025},
}
